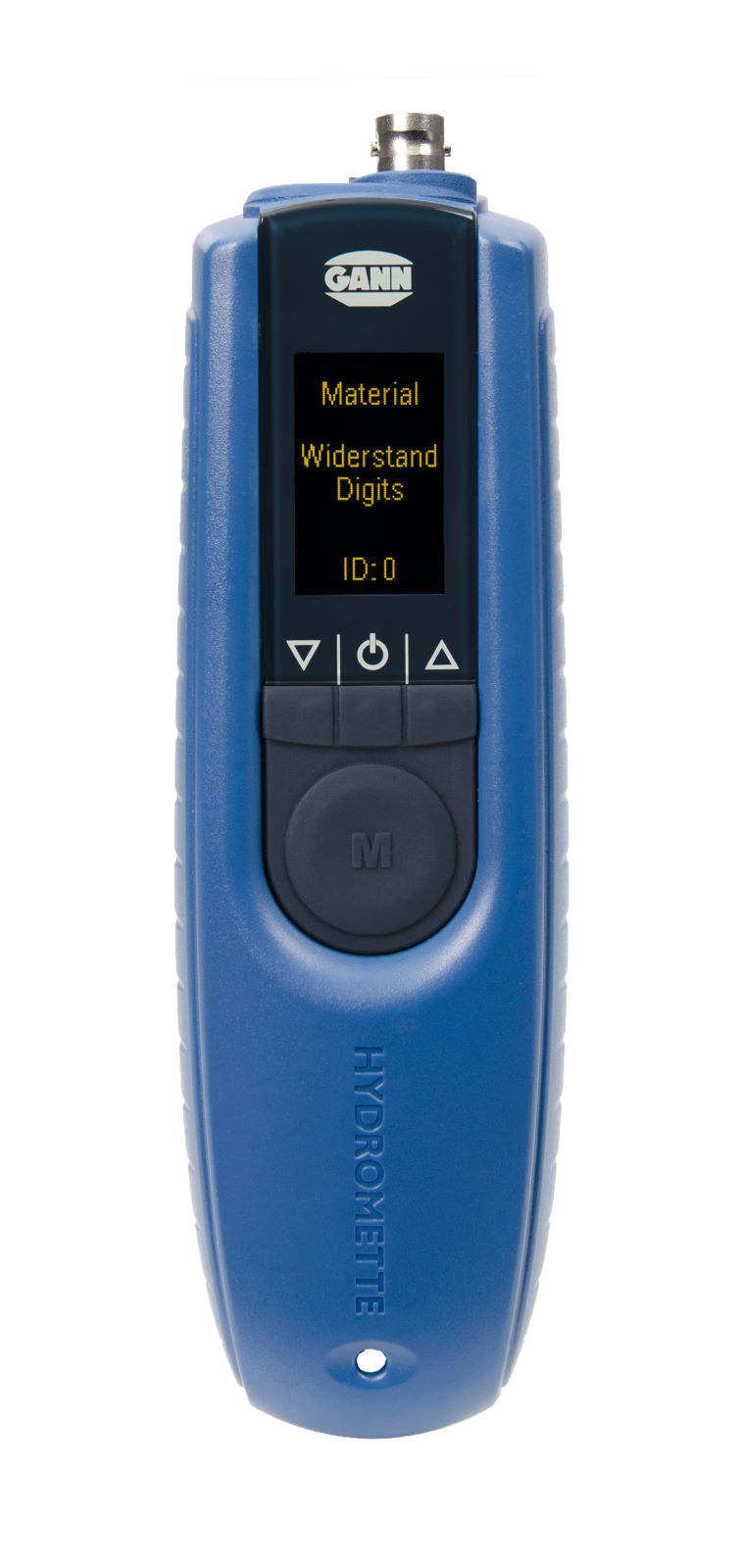

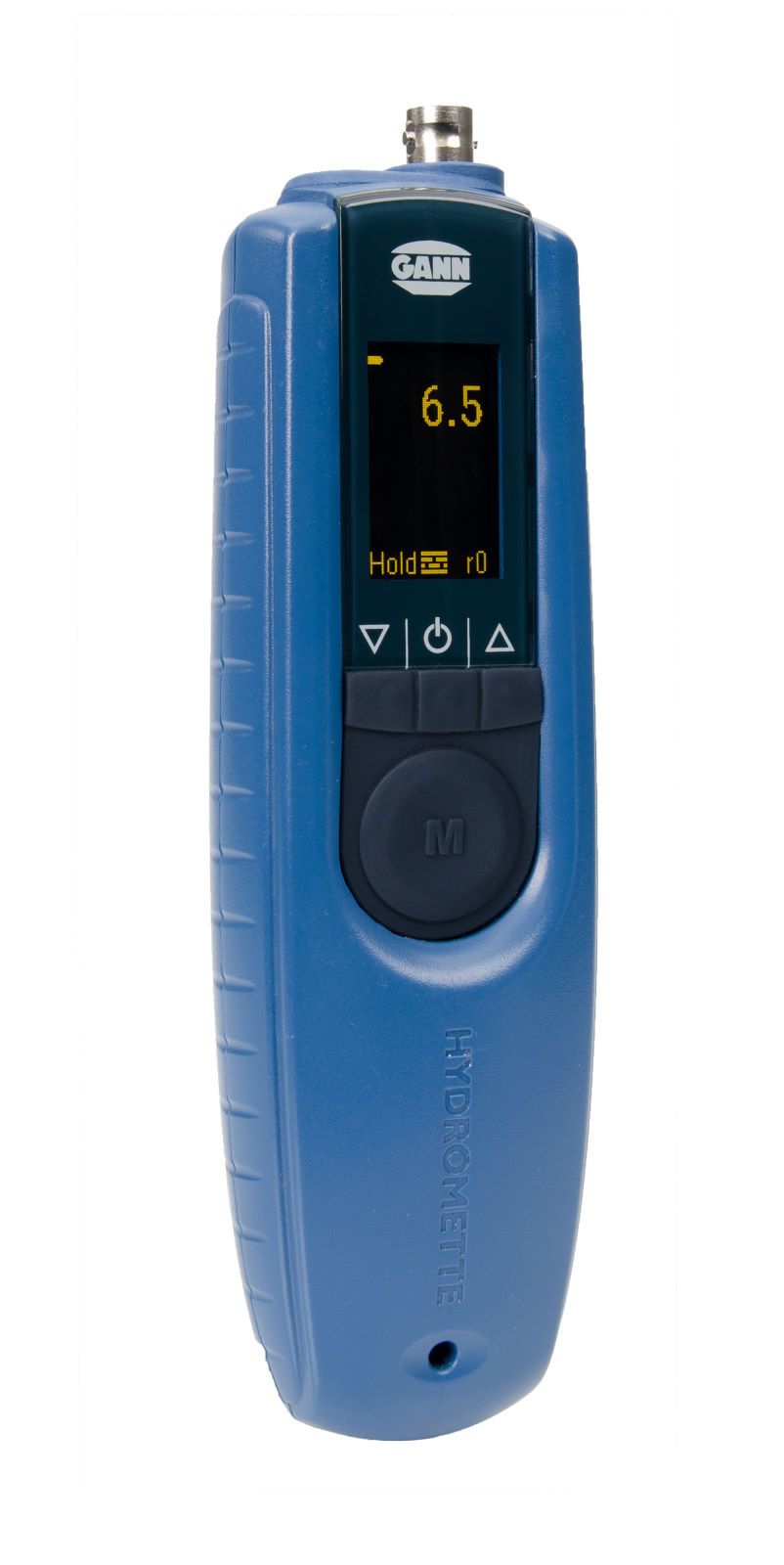

GANN Hydromette BL E 2 – Meter for building moisture, timber moisture and temperature, #30011310
GANN Hydromette BL E 2 – Meter for building moisture, timber moisture and temperature, #30011310
GANN Hydromette BL E 2 – Meter for building moisture, timber moisture and temperature, #30011310
Also available as a set here.The BL E 2 is a triple-function electronic measuring instrument designed for the precise measurement of wood moisture content, building moisture content and temperature. It is based on the resistance measurement principle and enables accurate measurements on wood, building materials, insulation and thermal insulation materials.
The GANN Hydromette BL E 2 is the successor to the tried-and-tested Hydromette BL E. Depending on the electrode connected, this multi-purpose measuring instrument is suitable for determining building moisture, timber moisture, and surface and material temperatures.
Various resistance electrodes can be connected for measuring moisture in building materials. This allows, for example, the analysis of screeds, plasters, mortar, concrete, bricks, and insulation materials. Moisture profiles and measurements in deeper layers of material are also possible with suitable electrodes.
The B 55 BL* active electrode can be used for non-destructive moisture testing of walls, ceilings and floors. Furthermore, the Hydromette BL E 2 supports resistance-based timber moisture measurements as well as temperature measurements using suitable Pt100 sensors.
OLED display and revised measurement electronics
The easy-to-read OLED display provides a clear presentation of the measured values and allows for simple navigation through the menu. A new 32-bit processor handles signal processing. The improved analogue-to-digital conversion and noise filtering ensure reliable and reproducible measurement results. A robust connector with a metal housing ensures a stable connection between the measuring instrument and the connected electrode.Saving measurement values and analysing them on a computer
The Hydromette BL E 2 features an extended circular buffer for the last ten measurement values. In addition, batch measurement is available. Up to five batches, each containing 50 measurement values, can be stored.
The stored values can be transferred to a computer via the USB port and analysed and documented using the GANN DIALOG PRO software. This makes it particularly easy to carry out series of measurements and more extensive moisture investigations.
Key features:
- Measurement of building moisture, timber moisture and temperature
- Easy-to-read OLED display
- 32-bit processor with revised signal processing
- Robust connector with metal housing
- Memory for the last ten readings
- Batch measurement for up to 5 × 50 readings
- USB interface for data transfer
- Analysis using GANN DIALOG PRO
- Menu navigation in German, English, French, Italian and Spanish
- Suitable for single, serial and documentation measurements
The Hydromette BL E 2 is suitable for, amongst others, painters, interior fitters, parquet floor layers, woodworking businesses, building drying contractors, construction firms, architects and building surveyors.
*Note: The AK 2 adapter cable (NM-AE, #31016732) is required to connect the B 55 BL active electrode. For device sets that already include a B 55 BL, this adapter cable is supplied as standard.

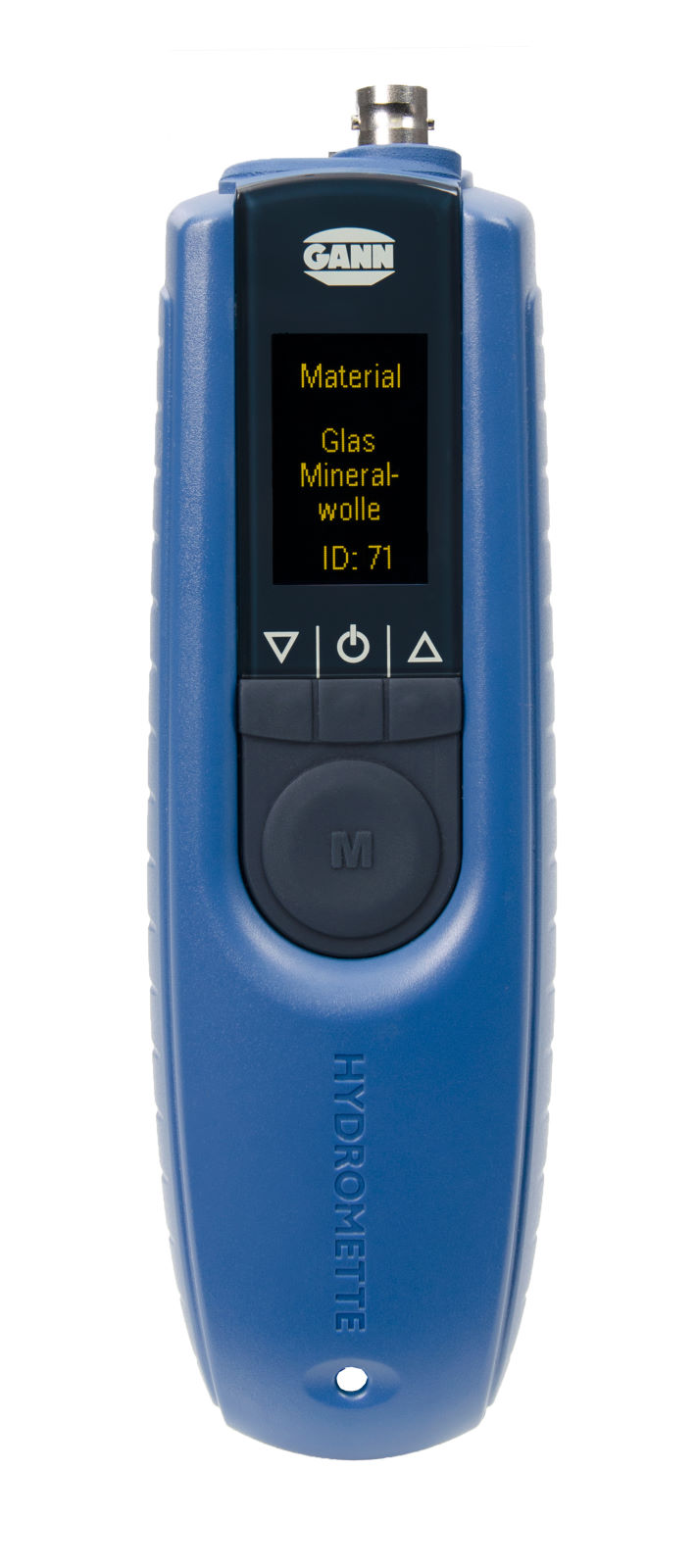

The timber moisture measurement circuit allows sawn timber (up to 180 mm thick), chipboard and parquet flooring to be measured. The device features a material selection function that automatically applies measurement corrections for 23 different building materials, such as screeds, mortar, plaster, concrete, bricks and various insulation materials.
*Hinweis:
Aufgrund der EU-Batterie VERORDNUNG 2023/1542 liefern wir dieses Produkt außerhalb Deutschlands ohne Batterien aus.
Due to EU battery REGULATION 2023/1542, we deliver this product outside Germany without batteries.
Technical specifications for the Gann Hydromette BL E 2:
Display: 1.54-inch OLED display
Display resolution: 0.1% for material moisture content
0.1 digits in scan mode
Response time: < 2 s
Storage conditions: + 5 to + 40 °C
- 10 to + 60 °C (short-term)
Operating conditions: 0 to + 50 °C
- 10 to + 60 °C (short-term)
< 85 % relative humidity, non-condensing
Power supply: 9 V block battery
Compatible types: Type 6LR61 or Type 6F22
Dimensions: 180 x 50 x 30 (L x W x H) mm
Weight: approx. 182 g
Protection class: III
Protection rating: IP20
Operating instructions Download here
Wood moisture:
- Impact electrode M 20 (3300) (Impact electrode M 20, #31003300)
- Piercing electrode M 19 (3400) (Einstech-Elektrode M 19 (3400))
- Ramming electrode M 18 (3500) (Ramming electrode M 18, #31003500)
Building moisture:
- Active electrode B 55 BL (13755) (Aktiv-Elektrode B 55 BL (13755))
- Impact electrode M 20 (3300) (Impact electrode M 20, #31003300)
- Piercing electrode M 19 (3400) (Einstech-Elektrode M 19 (3400))
- Insertion electrode pair M 6 (3700) (Plug-in electrode pair M 6, #31003700)
- Depth-measuring electrode pair M 21-100 (3200) (Depth measuring electrode pair M 21-100, #31003200)
- Depth gauge electrode pair M 21-250 (3250) (Depth measuring electrode pair M 21-250, #31003250)
- Flat electrode pair M 6-Bi 300, #3703 (Flach-Elektrodenpaar M 6-Bi 300, #3703)
- Flat electrode pair M 6-Bi 200, #3702 (Flach-Elektrodenpaar M 6-Bi 200, #3702)
- Brush-electrode pair M 25-100 (3740) (Brush-electrode pair M 25-100, #31003740)
- Brush-electrode pair M 25-300 (3743) (Brush-electrode pair M 25-300, #31003743)
- Plug-in electrode tips M 20-Bi 200, #4360 (Insertion electrode tip pair M 20-Bi 200, #31004360)
- Insertable electrode tips M 20-Bi 300, #4365 (Insertion electrode tip pair M 20-Bi 300, #31004365)
- Insertable electrode tips M 6-150, #3706 (Insertion electrode tip pair M 6-150, #31003706)
- Insertable electrode tips M 6-250, #3707 (Einsteck-Elektrodenspitzen M 6-250, #3707)
Material temperature:
- Insertion temperature probe ET 10 BL (13165) (Einstech-Temperaturfühler ET 10 BL (13165))
Surface temperature:
- Surface temperature probe OT 100 BL (Oberflächen-Temperaturfühler OT 100 BL)
Other accessories:
- Ready case BK 14-I (5061) (Gann stand-by case BK 14-I, #31005061)
- Ready case BK 14-II (5062) (Gann stand-by case BK 14-II, #31005062)
- BNC adapter (6050) (BNC-Adapter (6050))
- Test adapter for building moisture (6071) (Gann test adapter building moisture, #31006071)
- Measuring cable MK 8 (6210) (Gann measuring cable MK 8, #31006210)
- Connecting cable MK 16 (16710) (Verbindungskabel MK 16 (16710))
