Screeningeagle / Proceq Profometer PM8000 PRO - Rebar Diameter & Cover Meter

Screening Eagle PM 8000 Pro – The flagship model with maximum analysis power

The PM 8000 Pro is the top-of-the-line model in the Profometer series from Screening Eagle and offers everything the PM8000 can do – and much more. This device is designed for experts who not only want to take precise measurements, but also want to comprehensively analyze entire reinforcement areas.

Exclusively included in the PM 8000 Pro:

• Multi-Line Scan (Area Scan) – Captures entire areas using multiple parallel line scans. Ideal for comprehensive inspections without measurement gaps.
• Heatmap – Automatically creates a color-coded map of the concrete cover for quick visual assessment.
• AR Heatmap – Brings concrete cover directly to your iPad via augmented reality – for intuitive on-site display in the real environment.
• Auto Spacing – Automatically detects the reinforcement spacing of the first layer, saving time during analysis.
• DBV statistics – Provides advanced evaluations in accordance with the guidelines of the German Concrete and Construction Technology Association – practical and compliant with standards.

All other advantages of the PM 8000:

In addition to these premium features, the PM 8000 Pro offers all the features of the PM 8000, including:

• Spot and line scan for point and line measurements
• Neighboring Rebar Correction (NRC) for first and second layers
• CSV export, statistics function, and URL export
• Cloud connection via Screening Eagle Workspace for automatic data synchronization

Conclusion:

With the Screening Eagle PM 8000 Pro, you not only get maximum measurement precision, but also powerful visualization and analysis functions that go far beyond standard measuring devices. Ideal for engineers, surveyors, and construction managers who do not compromise when it comes to reinforcement testing.

Scope of delivery PM8000 PRO:

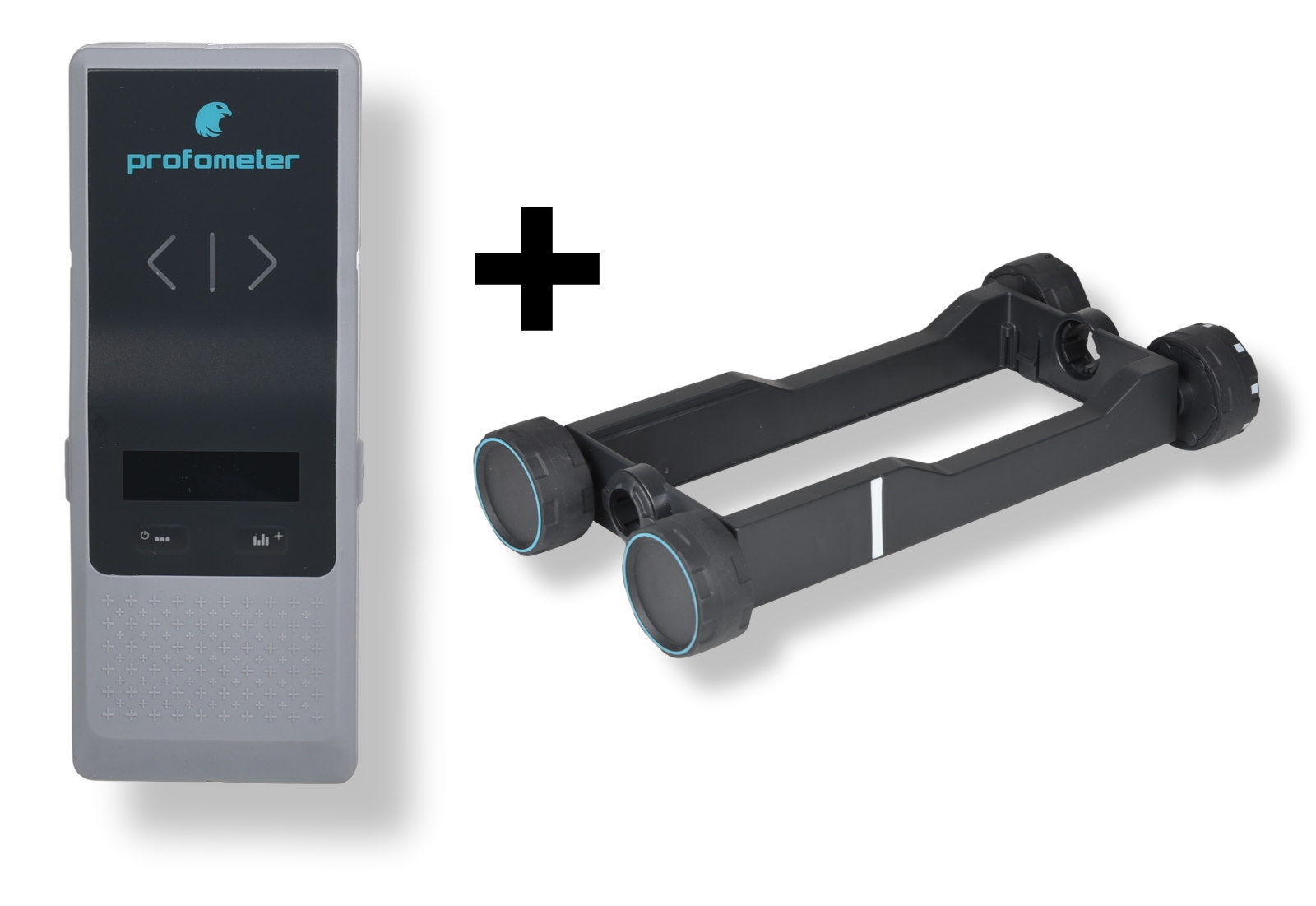

• PM8000 sensor (device)
• Measuring trolley

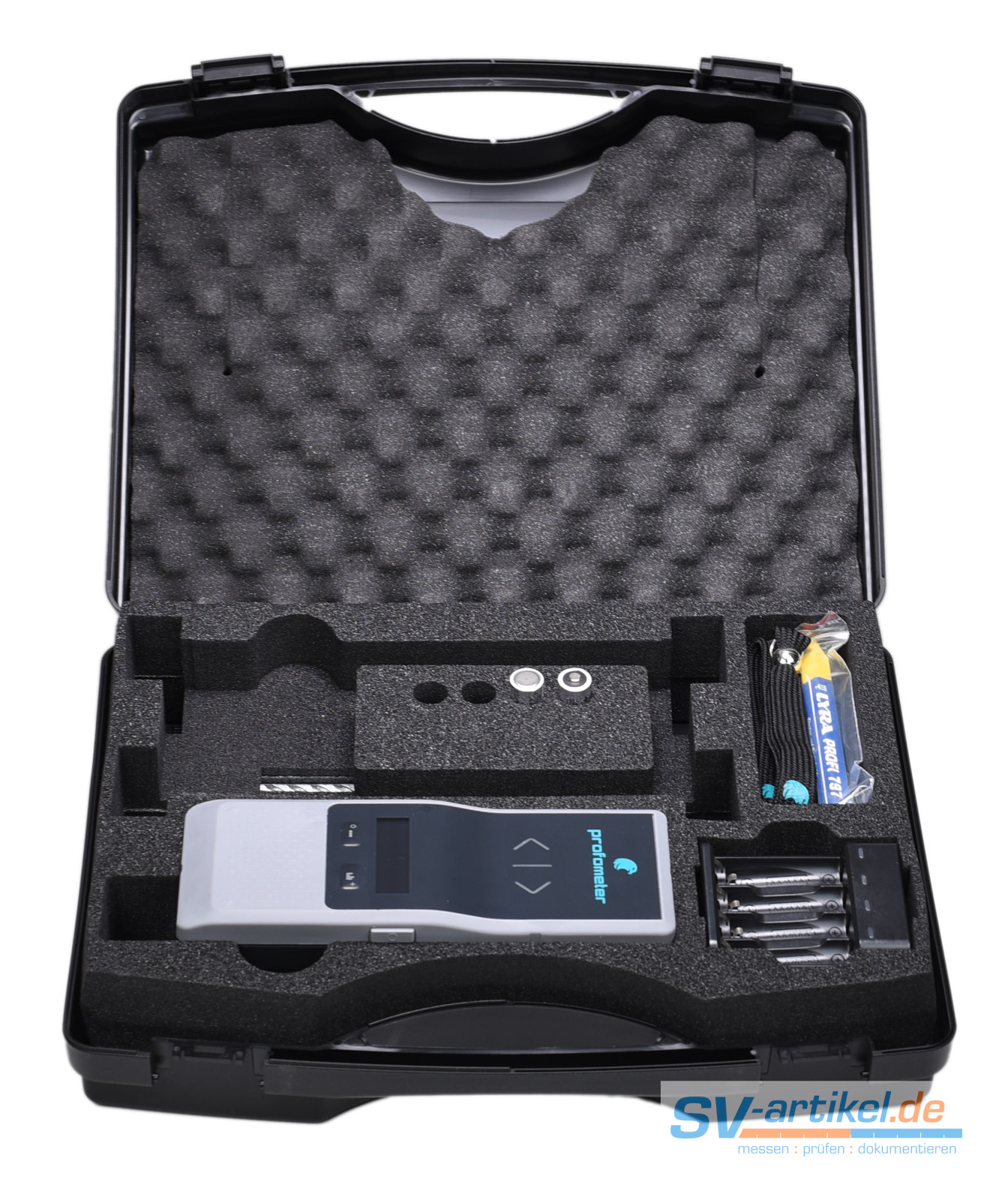

• Case
• 2 x AAA rechargeable batteries*
• Charger
• Marking pen
• Quick start guide
• Carrying strap
