Screeningeagle / Proceq Profometer PM8000 - Rebar Diameter & Cover Meter

Screeningeagle / Proceq Profometer PM8000 - Reinforcement detector

The Profometer PM8000 goes one step further than the PM8000lite:

With the powerful line scan function, you can accurately record multiple measurements along a defined route – ideal for detailed analyses and maximum measurement accuracy.

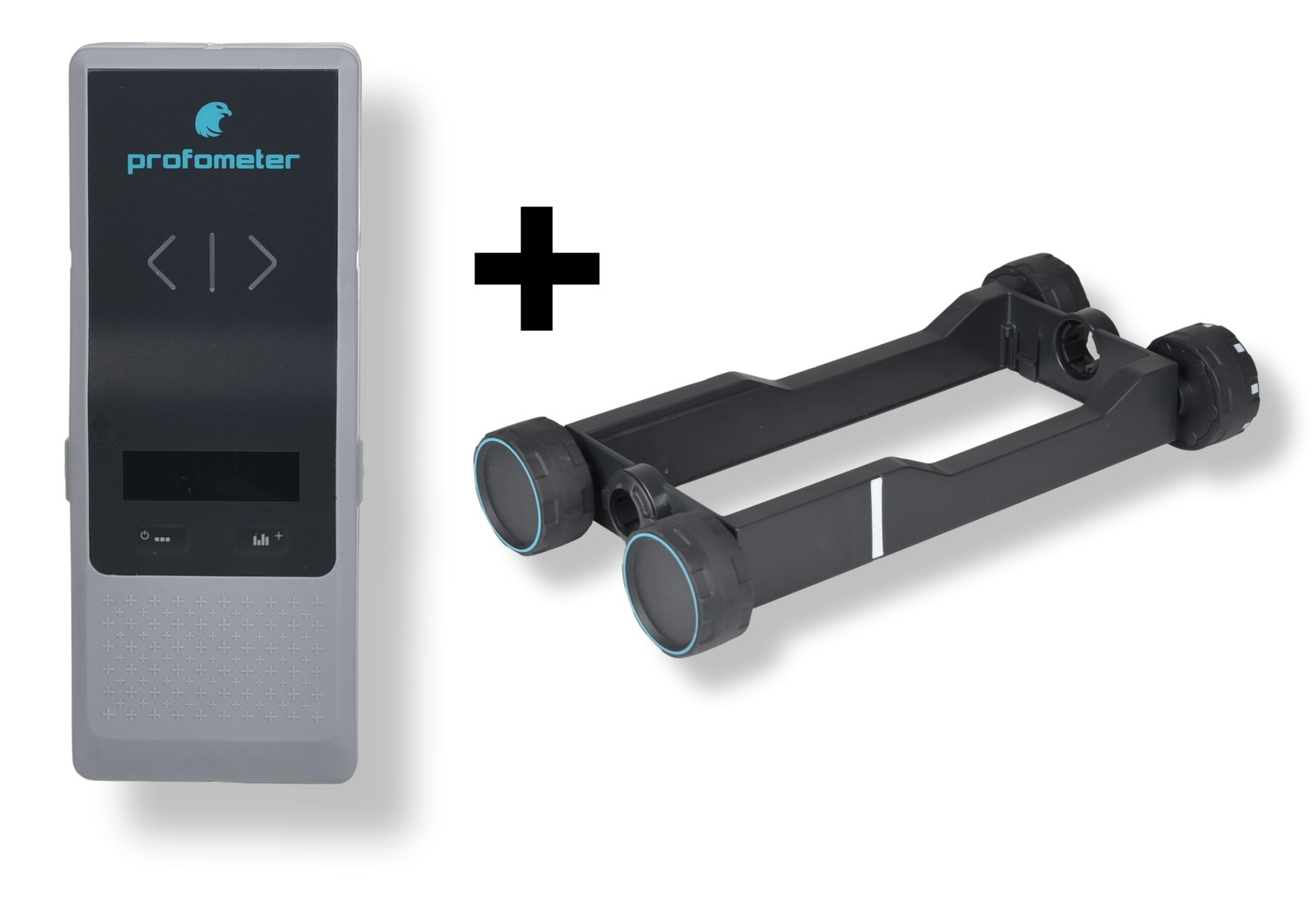

The matching measuring trolley is included for maximum ease of use. This allows you to move along the measuring line effortlessly and evenly – quickly, cleanly, and without measurement errors.

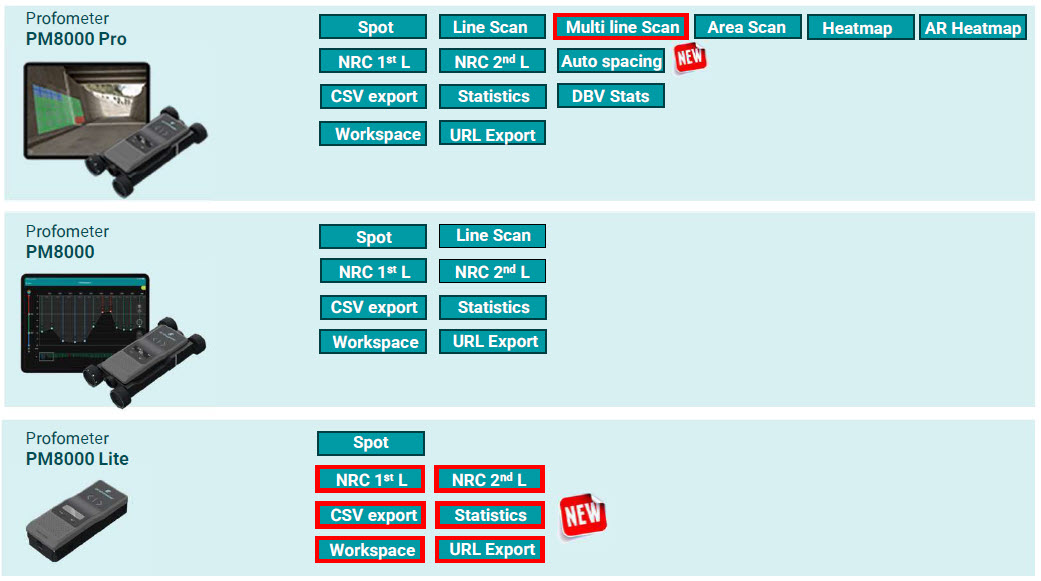

All advantages at a glance:

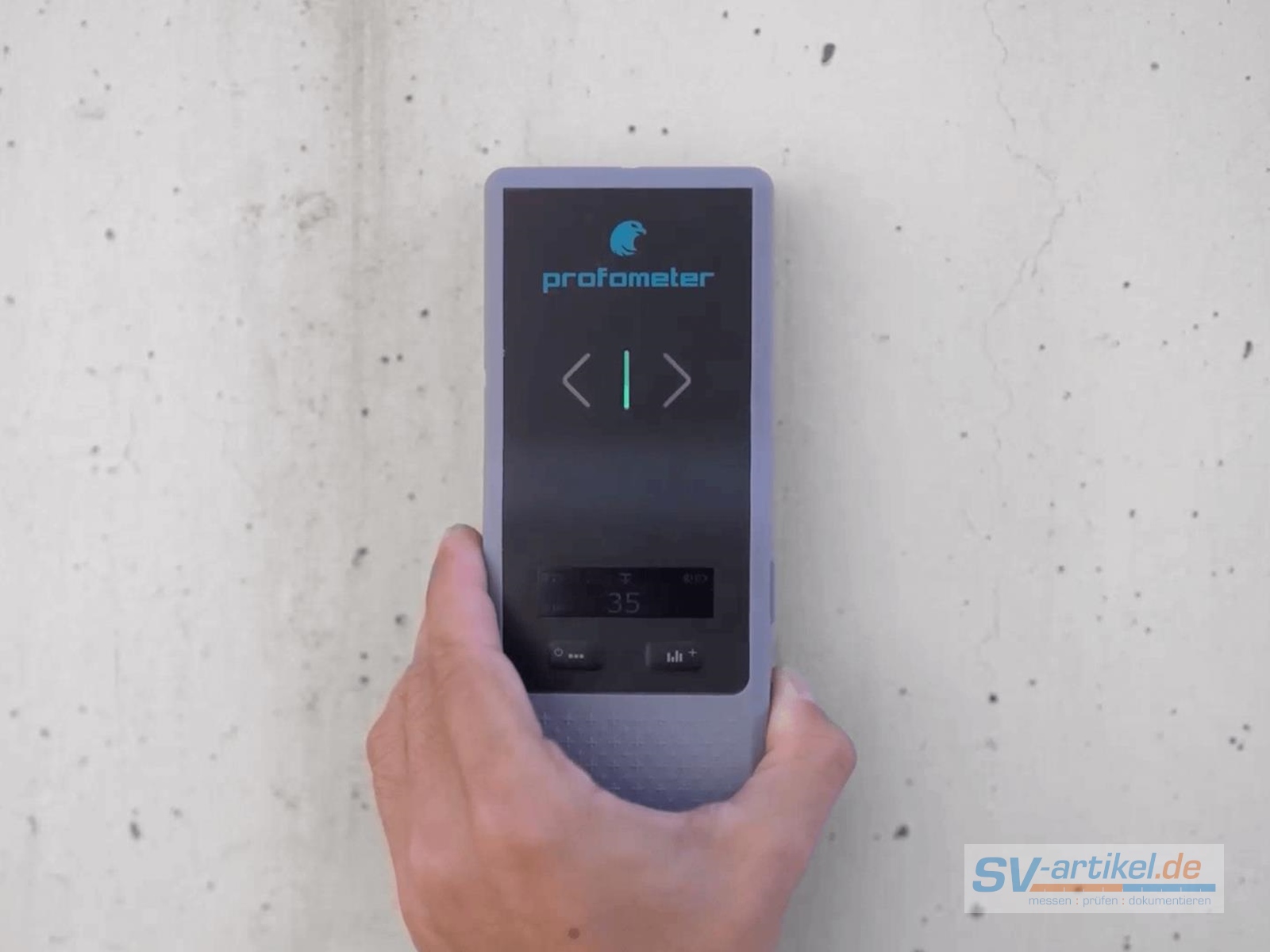

• Spot (point measurement) – For fast and targeted individual measurements at precisely defined points.
• Line Scan – Records measured values along a line for detailed analysis.
• NRC 1st L (Neighboring Rebar Correction) – Corrects the influence of neighboring reinforcing bars from the first layer on the concrete cover measurement.
• NRC 2nd L (Neighboring Rebar Correction) – Additionally takes into account the influence from the second layer for maximum measurement accuracy.
• CSV export – Easy export of measurement data in universal CSV format for further processing.
• Statistics – Automatic generation of meaningful statistics on measurement series.
• Workspace – Seamless cloud integration via the Screening Eagle Workspace platform for automatic synchronization, storage, and evaluation of all measurement data.
• URL export – Easy sharing of measurement data via a temporarily generated web link.

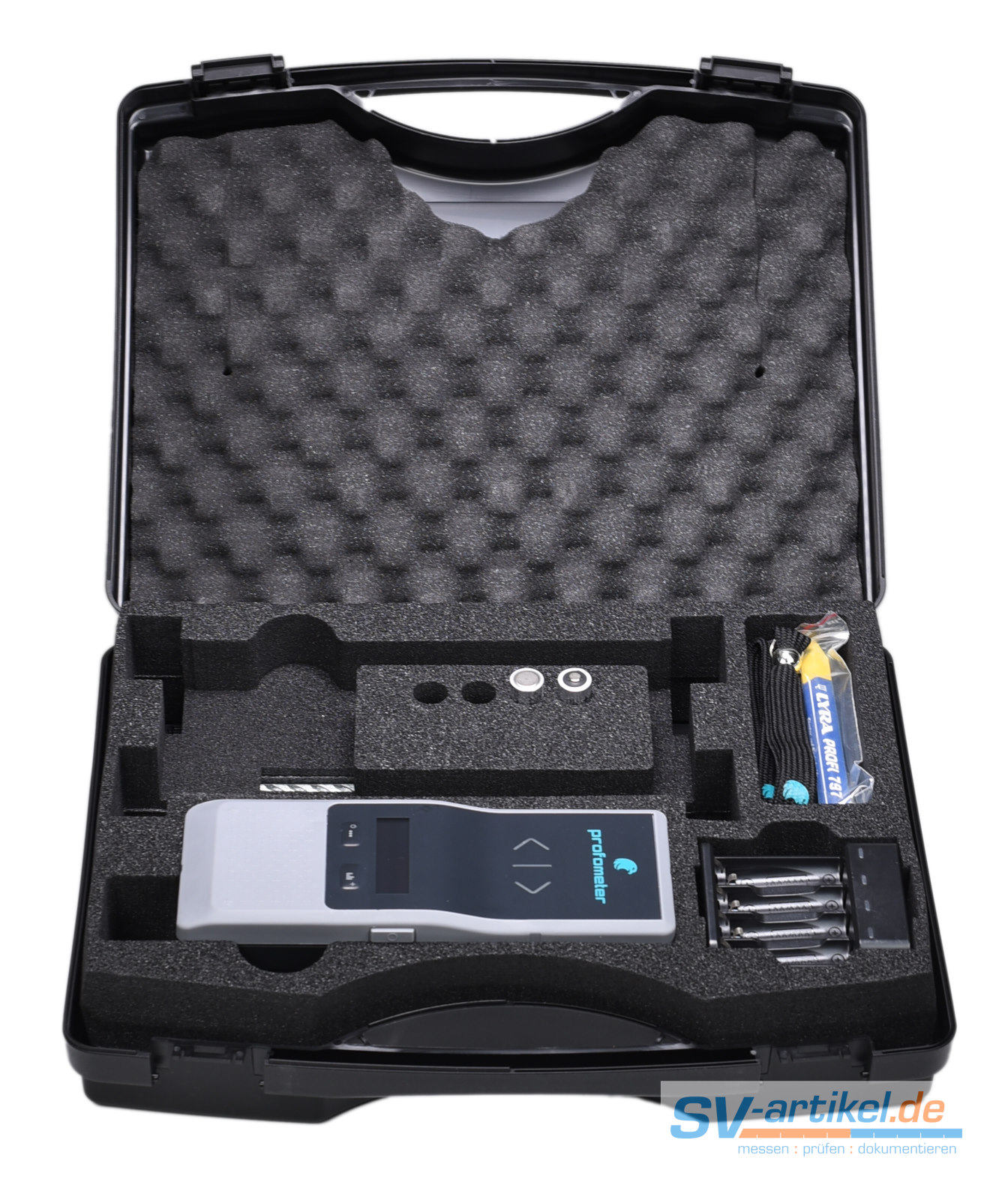

Scope of delivery PM8000:

• PM8000 sensor (device)
• Measuring trolley
• Case
• 2 x AAA rechargeable batteries*
• Charger
• Marking pen
• Quick start guide
• Carrying strap

Conclusion:

The Screening Eagle Profometer PM8000 is the high-end solution for locating and analyzing reinforcement in concrete. With pinpoint spot measurement, comprehensive line scan including measuring trolley and intelligent neighboring rebar correction, it delivers accurate results – even in complex reinforcement situations.

Thanks to CSV and URL export, integrated statistics function and seamless cloud connectivity via the Screening Eagle Workspace, you have your data at your fingertips at all times and can share it immediately.

Robust, user-friendly and extremely accurate – for construction managers, engineers and surveyors who don't compromise. Made in Switzerland!
