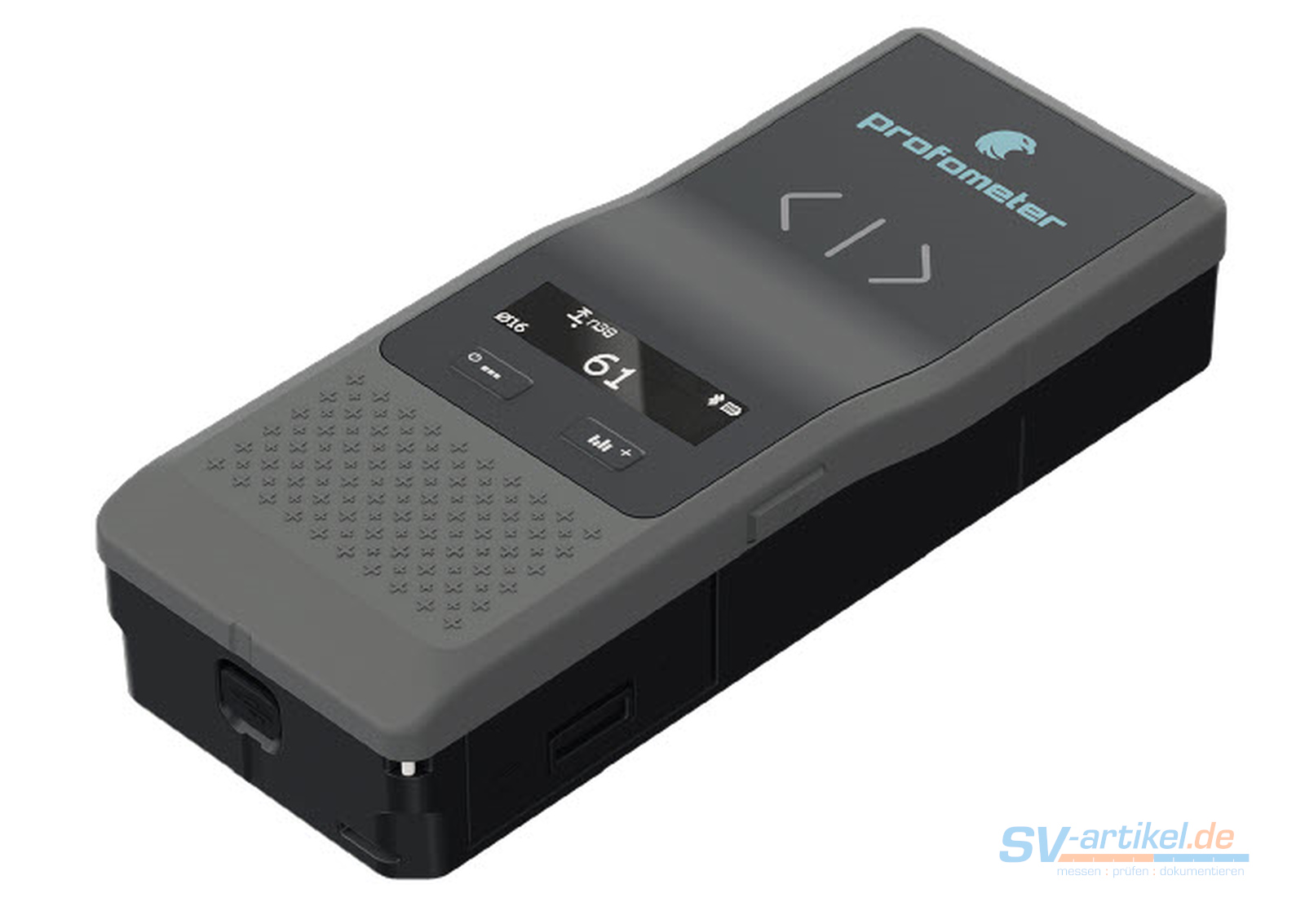

Screening Eagle / Proceq Profometer PM8000 Lite - Rebar Diameter & Cover Meter
The Profometer PM8000lite from Screening Eagle is a powerful measuring device for the precise recording and evaluation of reinforcement data in concrete. With its versatile functions, it offers the highest accuracy and maximum efficiency - from spot measurement to comprehensive data evaluation.- Spot (point measurement) - For fast and targeted individual measurements at precisely defined points
- NRC 1st L (Neighboring Rebar Correction) - Corrects the influence of neighbouring rebars from the first layer on the concrete cover measurement
- NRC 2nd L (Neighboring Rebar Correction) - Also takes into account the influence of the second layer for maximum measurement accuracy
- CSV export - Simple export of measurement data in universal CSV format for further processing
- Statistics - Automatic creation of meaningful statistics for measurement series
- Workspace - Seamless cloud integration via the Screening Eagle Workspace platform for automatic synchronisation, storage and evaluation of all measurement data
- URL export - Easy sharing of measurement data via a temporarily generated web link.
With the Profometer PM8000lite, you combine state-of-the-art measurement technology with intuitive operation and flexible data processing - perfect for use in the field and analysing in the office.
Scope of delivery PM8000lite:
- PM8000lite sensor (device)
- carrying case
- 4 x AAA rechargeable batteries*
- charger
- Marker pen
- Quick guide
- Carrying strap
Swiss precision and performance:
- Unrivaled quality and performance for professional rebar locating
- Compact, ultra-lightweight and designed for use in harsh environments.
Quick and easy to use:
- Reliable estimation of rebar cover and diameter at the touch of a button
Versatile applications:
- Pinpoint the location of rebar
- Find safe places to drill
- Check minimum cover
- Perform metal detection
Discover the advantages:
- Efficient work thanks to fast and precise measurements
- Avoidance of damage through non-destructive testing
- Greater safety by avoiding holes in rebars
- Improved quality by checking the concrete cover
The cover measuring device - an indispensable tool for all construction professionals!
Download Instruction Profometer PM8000 - German
Download Instruction Profometer PM8000 - Englisch
*Hinweis:
Aufgrund der EU-Batterie VERORDNUNG 2023/1542 liefern wir dieses Produkt außerhalb Deutschlands ohne Batterien aus.
Due to EU battery REGULATION 2023/1542, we deliver this product outside Germany without batteries.
Download Instruction Profometer PM8000 - German
Download Instruction Profometer PM8000 - Englisch
Applications:
Rebar location, locating safe drilling locations, quality inspection, minimum overburden testing, metal detection
Technology:
Eddy current
Coverage Measuring depth:
Up to 185 mm / 7.3 in
Coverage measurement accuracy:
+/-1 mm / 0.04 in to 4 mm /0.16 in depending on depth
Reinforcement diameter Measuring depth:
up to 63 mm / 2.5 in
Reinforcement diameter measuring accuracy:
+/- 1 rebar size
Display:
High-contrast OLED screen
Dimensions:
190 x 75 x 45 mm / 7.5 x 3.0 x 1.8 in
Weight:
300 g
Battery:
2 x AA (NiMH) rechargeable or non-rechargeable
Safe to fly
8 hours autonomy
USB-C power bank (not included in the scope of delivery)
Download Instruction Profometer PM8000 - Englisch
Applications:
Rebar location, locating safe drilling locations, quality inspection, minimum overburden testing, metal detection
Technology:
Eddy current
Coverage Measuring depth:
Up to 185 mm / 7.3 in
Coverage measurement accuracy:
+/-1 mm / 0.04 in to 4 mm /0.16 in depending on depth
Reinforcement diameter Measuring depth:
up to 63 mm / 2.5 in
Reinforcement diameter measuring accuracy:
+/- 1 rebar size
Display:
High-contrast OLED screen
Dimensions:
190 x 75 x 45 mm / 7.5 x 3.0 x 1.8 in
Weight:
300 g
Battery:
2 x AA (NiMH) rechargeable or non-rechargeable
Safe to fly
8 hours autonomy
USB-C power bank (not included in the scope of delivery)
Im folgenden einige Video-Tutorials für den Screening Eagle (früher Proceq) PM-8000. Diese sind in englischer Sprache:
Arbeiten mit der Profometer-App und dem PM-8000:
Arbeiten mit der Profometer-App und dem PM-8000:
Downloads for Screeningeagle Profometer PM8000
Profometer AppOnly available for Apple (IOS)
Detailed instructions:
Download Anleitung Profometer PM8000 - Deutsch
Download Anleitung Profometer PM8000 - Englisch
Quick guide:
Quickstart-Anleitung (Multilingual)
Useful tips (links lead to screeningeagle page):
Scanning rebars in the first layer with the PM8000
Checking the reinforcement cover of columns and beams
Version differences of the PM8000 device family:
Legend:
Spot: Point measurement
Line scan: Line scan
Multi-line scan: Multiple line scan to scan an entire area (area scan)
Heatmap: Create a map of the scanned area
AR heatmap: Heatmap for concrete coverage + augmented reality display on the iPad
NRC 1st L: "Neighboring Rebar Correction" is a correction that takes into account the influence of neighbouring rebars (only from the first layer) on the measurement of the concrete cover. See also Measuring the reinforcement
NRC 2nd L: "Neighboring Rebar Correction" is a correction that takes into account the influence of neighbouring rebars (only from the second layer) on the measurement of the concrete cover.
Auto Spacing: Automatic detection of the rebar spacing in the first layer (first layer)
CSV export: Export of the measurement data in CSV format
Statistics: Creation of statistics
DBV Stat: "DBV statistics", where DBV is the abbreviation for "Deutscher Beton- und Bautechnik-Verein". This is a set of extended statistical evaluation methods for assessing concrete cover, based on practical guidelines from this German professional association
Workspace: Cloud platform "Screening Eagle Workspace", via which all measurement data (spot, line and area measurements) are automatically synchronised, stored and evaluated
URL export: share measurement data via a temporarily generated web link (URL)
