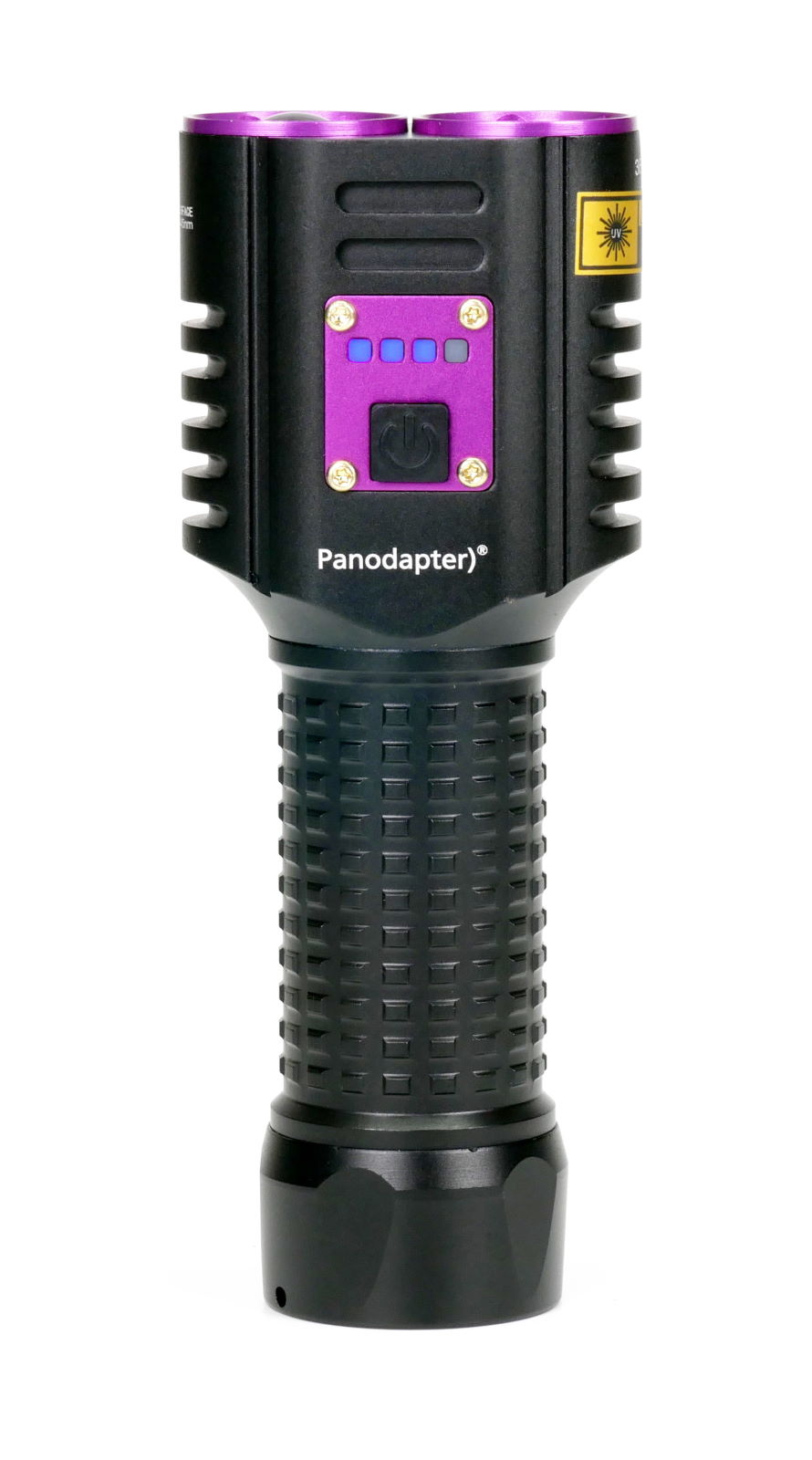

Panodapter Twin Lamp 365/445 nm – Specialised lamp for building forensics

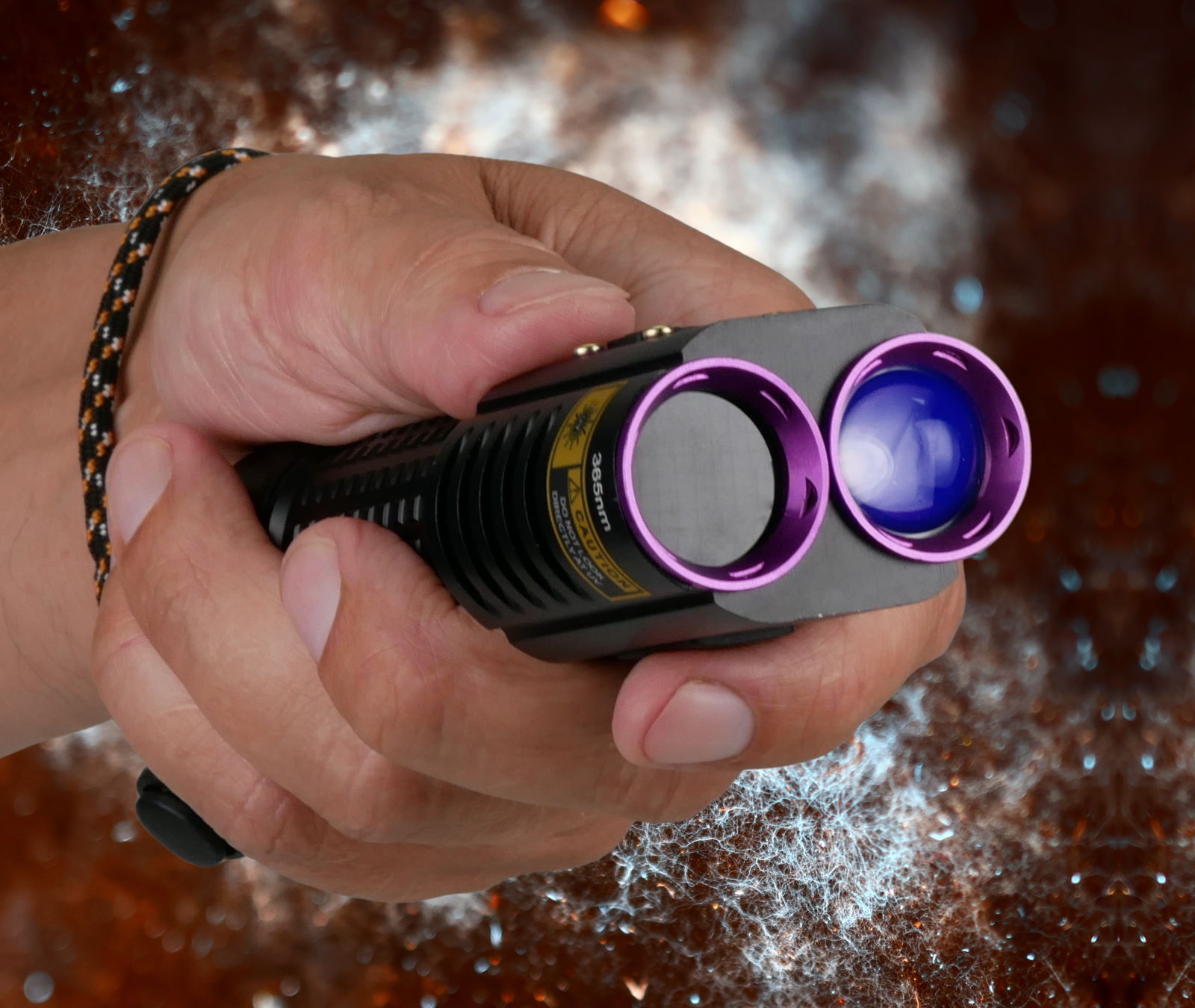

We have developed the Panodapter Twin Lamp specifically to meet the requirements of building forensics. It combines a 365 nm UV LED and a 445 nm blue light LED in a compact housing.

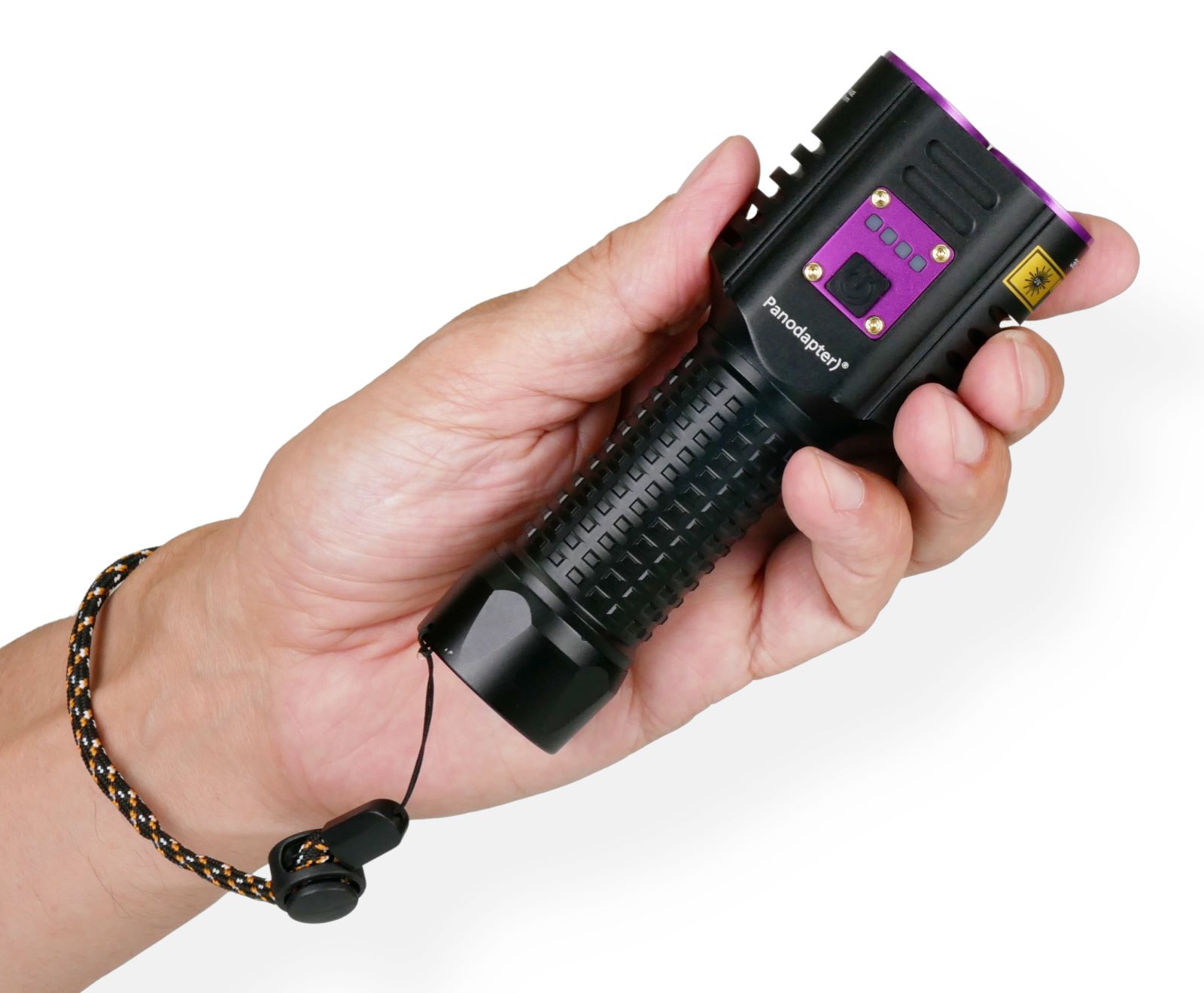

It has been designed as a practical ‘always-with-you’ lamp for quick on-site inspections. It is a cost-effective addition to our larger inspection lights and is particularly suitable for mobile use and initial assessments.
The 445 nm LED features specially tuned optics. This produces a circular light cone with uniform illumination. This allows surfaces to be examined in a controlled manner without any distracting variations in brightness.
Product features
- UV light at 365 nm with two brightness levels
- Blue light at 445 nm with three brightness levels
- 10 watts of power for each
- Uniform, circular illumination thanks to the built-in optics in 445-nm mode

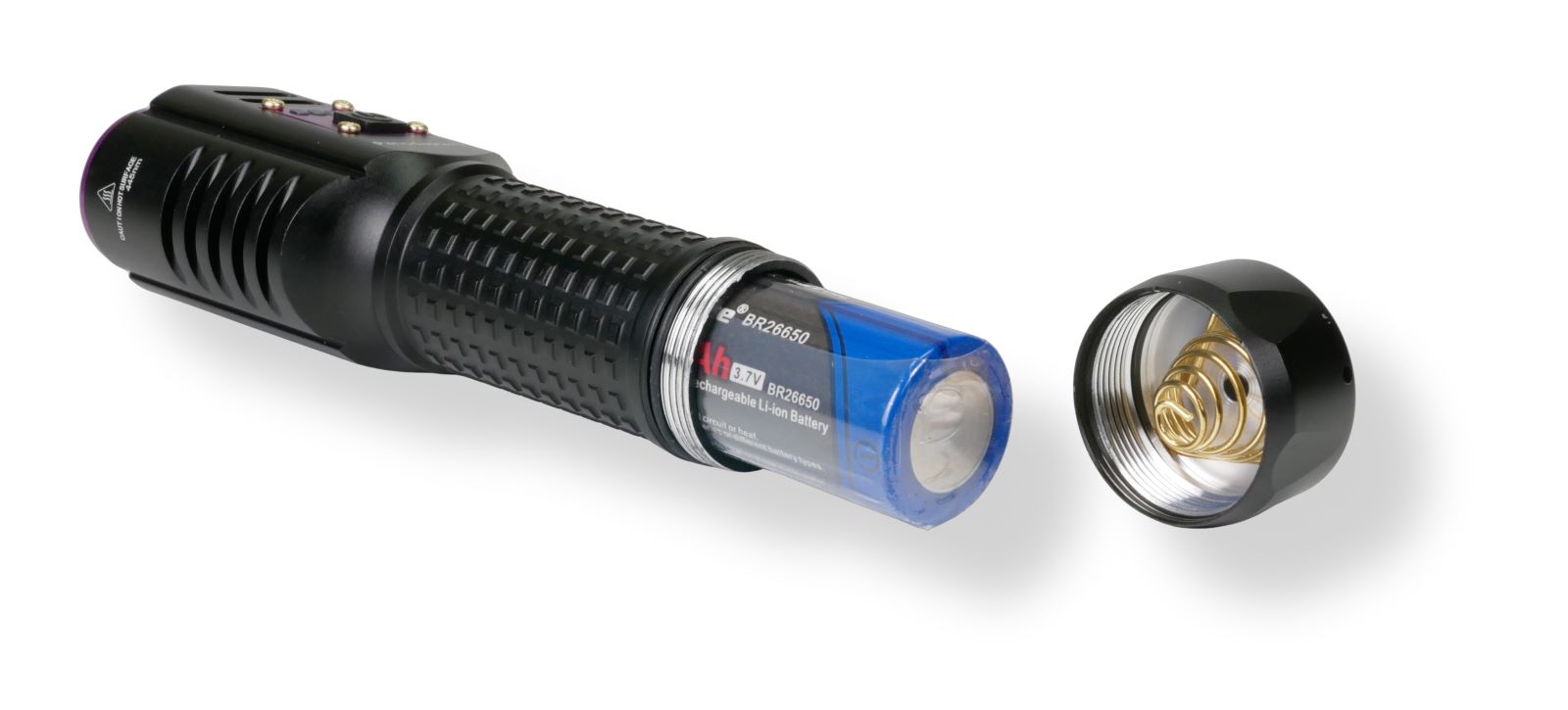

- Replaceable lithium-ion battery with a capacity of 5,000 mAh
- Charge status indicator via blue LEDs

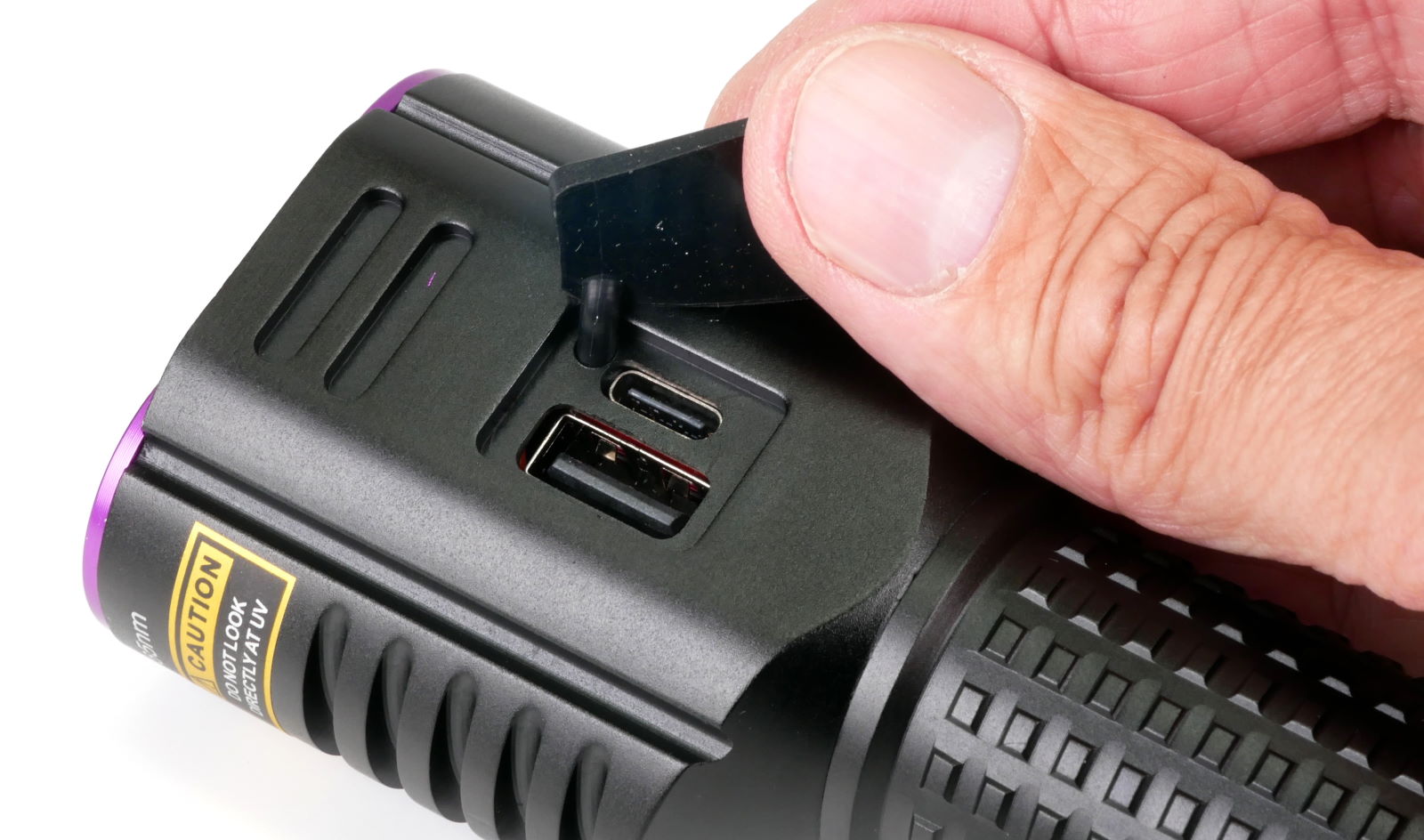

- USB-C port for charging
- USB-A output for use as a power bank
- IP65 protection rating
Technical specifications
| Property |
Details |
Dimensions
|
133 mm long, 51 mm in diameter |
| Weight |
256 g including the battery |
| Light sources |
1 × UV-LED 365 nm, 1 × LED 445 nm |
| Performance |
2 × 10 Watt |
| Power supply |
1 × Lithium-Akku BR26650, 5.000 mAh, interchangeable |
| Charging port |
USB-C |
| Power bank output |
USB-A |
| Protection class |
IP65 |
| Emission band at 365 nm |
approx. 50 cm in diameter at a distance of 1 m |
| Emission band at 445 nm |
approx. 100 cm in diameter at a distance of 1 m |
| Modes at 365 nm |
2 Brightness levels |
| Modes at 445 nm |
3 Brightness levels and strobe light |
Contents of pack
Without goggles:
1 × Panodapter Twin lamp 365/445 nm
1 × BR26650 lithium-ion battery with 5,000 mAh
1 × USB-C charging cable
Includes glasses:
1 × Panodapter Twin lamp 365/445 nm
1 × BR26650 lithium-ion battery with 5,000 mAh
1 × USB-C charging cable
1 × 3M UV safety goggles
1 × Panodapter orange filter goggles
We offer the lamp in two versions: without goggles and with two pairs of goggles (3M UV safety goggles and orange filter goggles)
Recommended accessories
- Clear 3M UV safety goggles: for working with 365 nm UV lighting
- Panodapter orange filter goggles: to increase visual contrast during examinations with 445 nm light
Safety instructions
Do not look directly into the light beam and do not direct the lamp towards your eyes or skin. When using the 365 nm UV light, suitable UV safety goggles must be worn. UV-sensitive materials must not be exposed to the light for longer than necessary.
